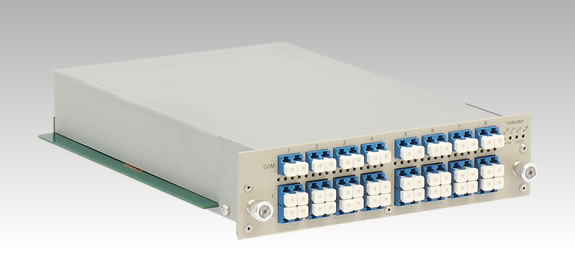

Intelegent Optical Switch

Web user interface, SNMP, CLI (TELNET/SSH), etc. allow remote monitoring and control. Continuously monitors optical power in-line with detection levels from -40dBm to +10dBm. By monitoring the optical power of the standby system, the risk of failure is reduced.

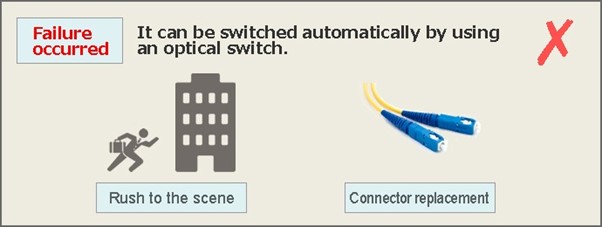

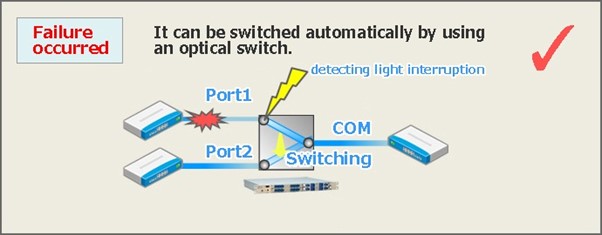

By switching the path using an optical switch, you can switch at once without making mistakes such as incorrectly inserting the optical fiber connector or staining the connector end face.

Highly reliable optical switch parts are used.

Long-life polishing film ADS series

Ideal for final polishing of optical connector end faces

The optical connector end face can be polished without scratches or dirt. In addition, the binder of the polishing film and silica abrasive grains do not adhere to the object to be polished. The polish level achieves ultra-low return loss (UPC).

Simultaneous realization of long life, which ADS excels at

A final polishing film that maintains the final finishing performance and simultaneously achieves a long life with stable polishing power. High performance polishing can also be achieved with distilled water.

Significantly improved fiber dent phenomenon

In particular, we have greatly improved the fiber dent that occurs when polishing a φ1.25mm ferrule multiple times. Prevents sudden deterioration of fiber dents even after repeated use.

Specification

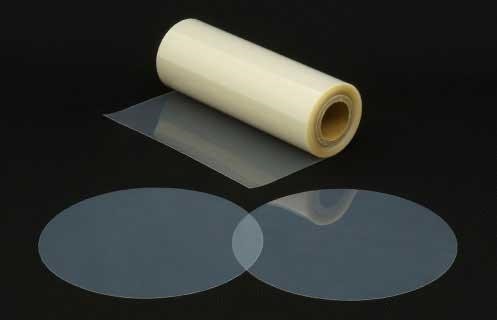

ADS Series Finished Silica Polishing Film
Standard Size	Disk type: 127mm (5inch) dia. (100 sheets/set)
	Roll type: 140mm (5.5inch) x 12m (1/set)
Film Color	ADS: Colorless and transparent (Round type has "ADS" stamped on the tab)
	ADS-NEXT: White translucent (Round type has "NEXT" stamped on the tab)
	ADS-NEO: White translucent (Round type has "NEO" stamped on the tab)
Base Thickness	75 µm (3 mils)
Applicable Ferrule	2.5mm diameter zirconia ferrule
	1.25mm diameter zirconia ferrule
Storage Conditions	Temperature: 10-30 degrees Celsius, humidity 30-60%, non-condensing

Many optical communication equipment troubles are caused by dirt on the optical connector end face.
The optical connector cleaner NEOCLEAN series uses ultra-fine fibers developed exclusively for optical connectors. Without using alcohol, even small stains invisible to the naked eye can be removed. Please use it to improve the work efficiency of optical construction and the reliability of communication services.

Feature

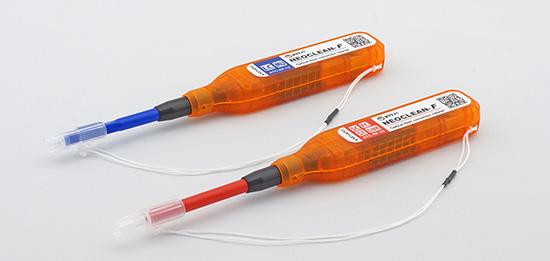

NEOCLEAN-F is a pen-type optical connector cleaner developed and evolved based on the cleaner technology that NTT-AT has cultivated over many years.

Even if it is small, it has been cleaned more than 1000 times.
With new technology, we have achieved the industry's top class cleaning frequency of over 1000 times, despite the compact size of 15 mm and the lightweight body of about 20 g.

High-performance cleaning thread thoroughly cleans dirt
Adopted high-performance cleaning thread that has a good reputation in the NEOCLEAN series. Firmly catches grease and dust on the end face of the connector.
Antistatic grade material is used for the main body to suppress reattachment of dust due to static electricity.

Convenient function for field workers
When not using the attachment, fix it to the rear of the main unit so that it does not interfere with cleaning.
Also, if you use the string that connects the main body and the attachment as a strap, you will not have to worry about falling even during on-site work.

Specification
Model number	ATC-NF-12	ATC-NF-25
Applicable connector (polished type)	MU, LC (PC / APC)	SC, FC, ST, E2000 (PC/APC)
Size (mm)	163(L) x 22(H) x 15(W) (not including attachments)
Weight	about 20g
Cleaning times	1000 times or more *
* When cleaning LC / PC for F12 and SC / PC for F25

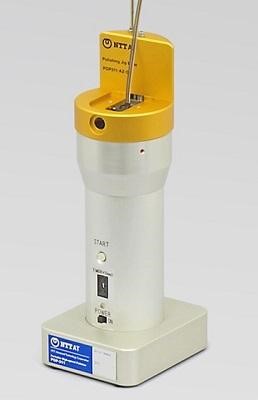

Portable Polishing Machine



Optical connector installation work for detached houses and broadband compatible condominiums associated with FTTH. Excess length processing optical connector installation work associated with optical fiber laying in intelligent buildings, or regrinding of damage repair of already laid optical fiber connector end faces. These can be worked on site.
It can also be used as the world's first manual MT polishing machine by using the attachment for MT (sold separately).

Feature

Battery Powered

Easy-to-find rechargeable Ni-MH batteries (AA) and alkaline batteries (AA) can be used.

High Speed Polishing

Polishes optical connectors at a high speed rotation of 700 times per minute. Moreover, it can be easily done on site in 3-5 processes.
Adhesive removal ~ AdPC polishing ⇒ 150 seconds (SC connector/terminal)
AdPC polishing by regrinding ⇒ 50 seconds (SC connector/terminal)
(AdPC Polishing: Advanced PC Polishing)

High Quality Polishing

Generous use of technology cultivated in mass-production polishing machines at factories. Polishing quality is the same level as for factory use.

Specification

Body specifications
